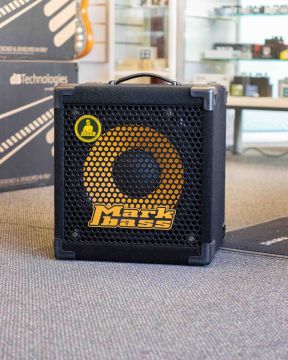

Markbass MINI CMD 121P IV (Käytetty)

INPUTS

INPUT impedance: 1 Mohm, max. voltage: 9 Vpp
RETURN impedance: 22 Kohm, max. voltage: 10 Vpp

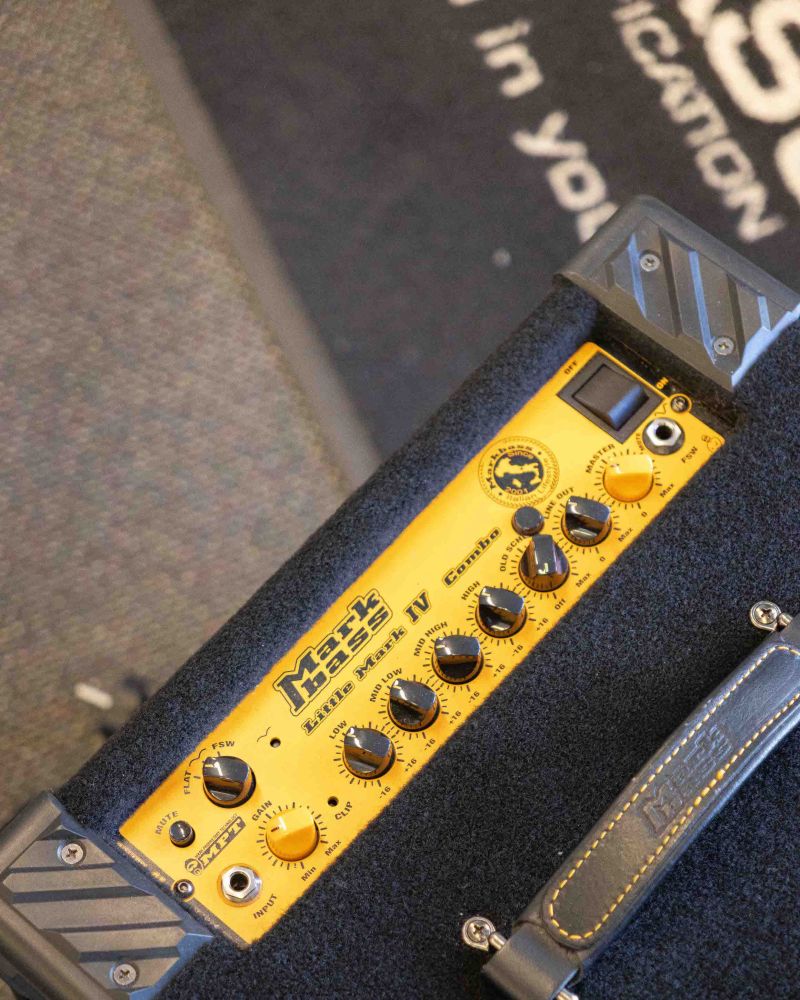

CONTROLS

GAIN –46 dB to +23 dB range
LINE OUT level control on front panel
PRE/POST EQ (for line out) switch on rear panel
GROUND LIFT switch on rear panel
MUTE SWITCH
MASTER VOLUME

EQUALIZATION
LOW: center frequency 68 Hz; level: ±16 dB
MID LOW: center frequency 360 Hz; level: ±16 dB
MID HIGH: center frequency 800 Hz; level: ±16 dB
HIGH: center frequency 10 kHz; level: ±16 dB
OLD SCHOOL: max cut range: 250 Hz – 20 kHz
3 WAY SWITCH: flat/scooped-mid/FSW

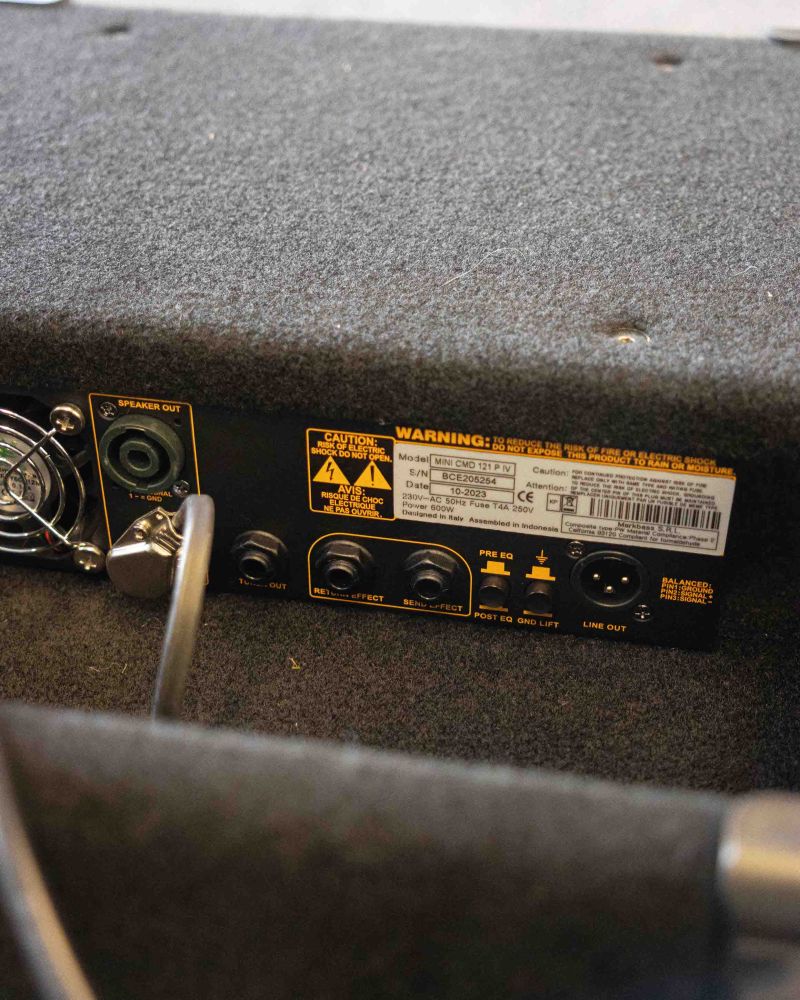

OUTPUTS

SEND EFFECTS: unbalanced, max. voltage 20 Vpp
TUNER OUT: unbalanced, max. voltage 2 Vpp
LINE OUT balanced XLR, max. voltage 20 Vpp
SPEAKER OUT: speakon/1/4” combo, 1/4”*
OTHERS

BI-BAND LIMITER
FOOTSWITCH (OPTIONAL): FLAT/SCOOPED-MID
OUTPUT POWER:

500W RMS @ 4 ohm, 300W RMS @ 8 ohm
POWER REQUIREMENT:
100V; 120V; 230V; 240V 50/60Hz (Voltage is factory preset according to region of sale)
SPEAKER

1×12″
TWEETER

piego
BASS REFLEX

rear
IMPEDANCE

8 ohms
SPEAKER POWER HANDLING

400W RMS (AES Standard)
